Performance and characteristics:
1, the pump has the advantages of simple structure, strong self suction performance, smooth oil delivery and low noise. It has good high speed characteristics and is suitable for low pressure continuous lubrication in lubrication system.
2. Apply oil viscosity: 30 ~ 150cSt clean guide oil or oil.
1, the pump has the advantages of simple structure, strong self suction performance, smooth oil delivery and low noise. It has good high speed characteristics and is suitable for low pressure continuous lubrication in lubrication system.
2. Apply oil viscosity: 30 ~ 150cSt clean guide oil or oil.
| type | Product No. | Theoretical spitting（cc/rev） | Exits（L/min） | Maximum pressure | Maximum deferred number | caliber（E） | (A) | B | C | D | weight（kg） | ||
| 1500rpm | 1800rpm | （kgf/cm2） | （rpm） | ||||||||||
| TOP-11A | 20601 | 1.5 | 2.2 | 2.7 | 5 | 2000 | PT1/8" orPT1/4" | 49 | 10.5 | 8 | 68 | 0.55 | |

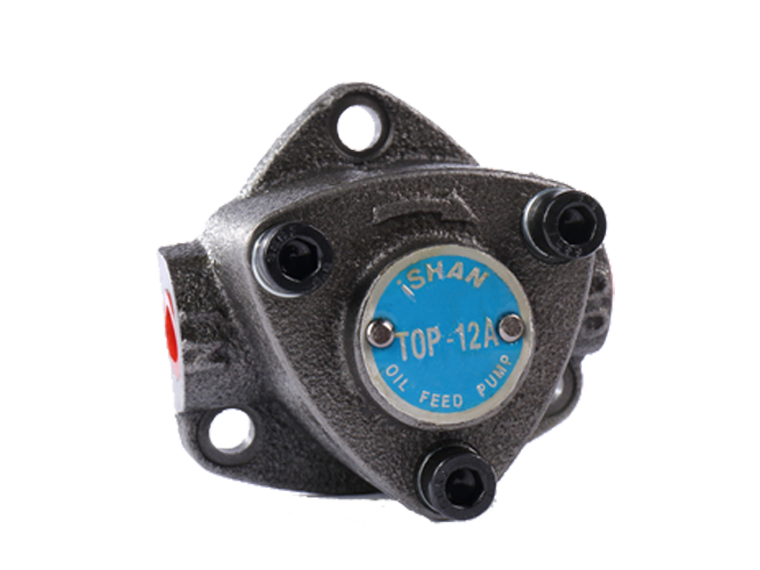

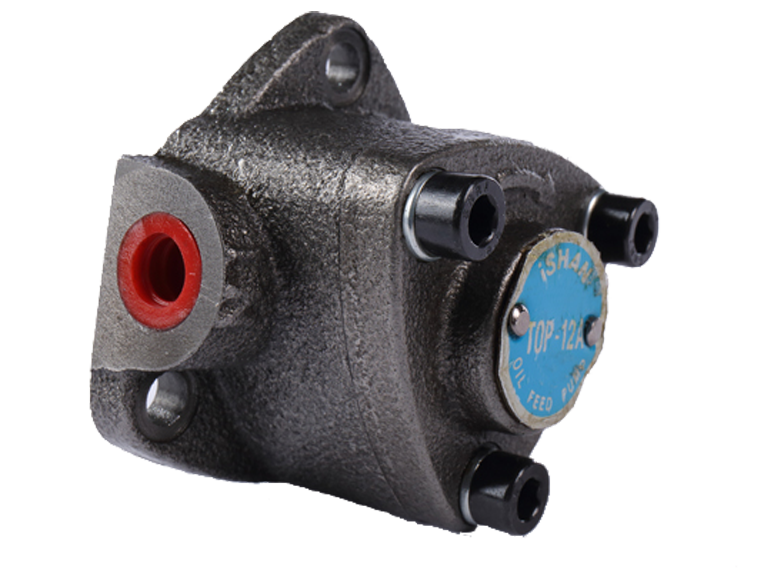

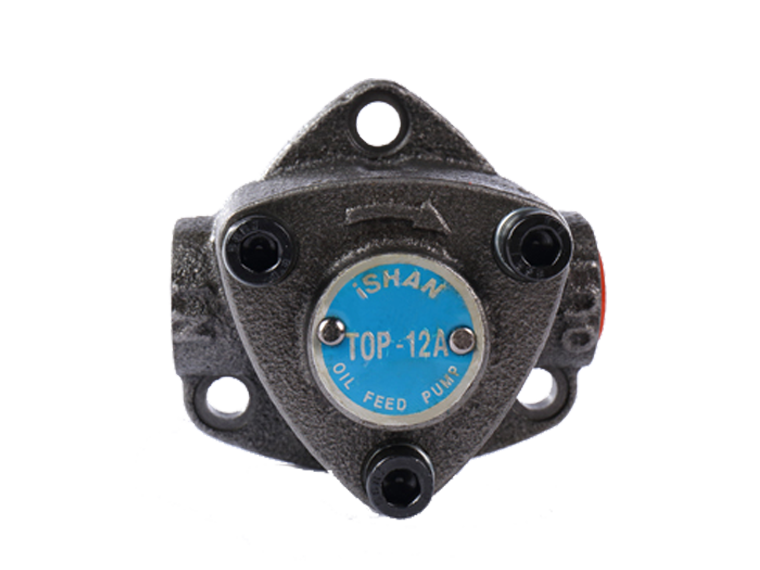

| TOP-12A | 2.5 | 3.7 | 4.5 | 5 | 1800 | PT1/4" | 56 | 11.5 | 8 | 76 | 0.6 | ||
| TOP-13A | 3.5 | 5.2 | 6.3 | 5 | 1800 | PT3/8" | 62 | 14 | 5 | 82 | 0.8 | ||
Performance and characteristics:
1, the pump has the advantages of simple structure, strong self suction performance, smooth oil delivery and low noise. It has good high speed characteristics and is suitable for low pressure continuous lubrication in lubrication system.
2. Apply oil viscosity: 30 ~ 150cSt clean guide oil or oil.
1, the pump has the advantages of simple structure, strong self suction performance, smooth oil delivery and low noise. It has good high speed characteristics and is suitable for low pressure continuous lubrication in lubrication system.
2. Apply oil viscosity: 30 ~ 150cSt clean guide oil or oil.
