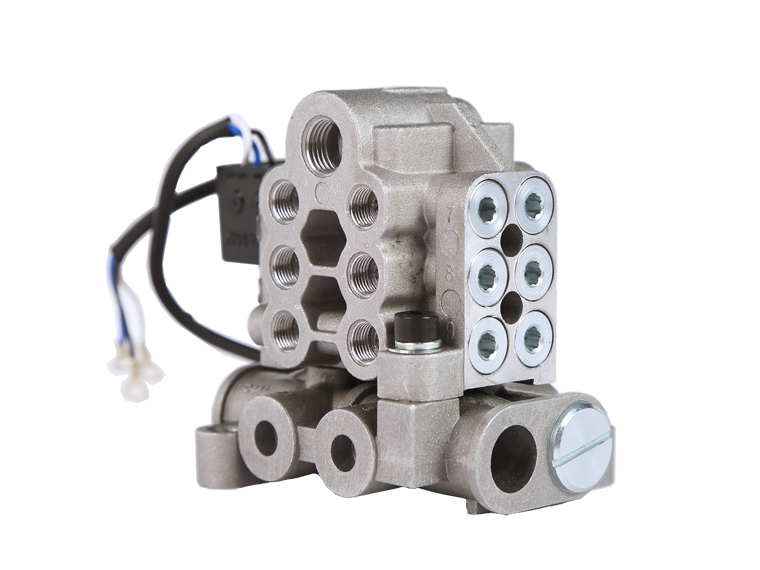

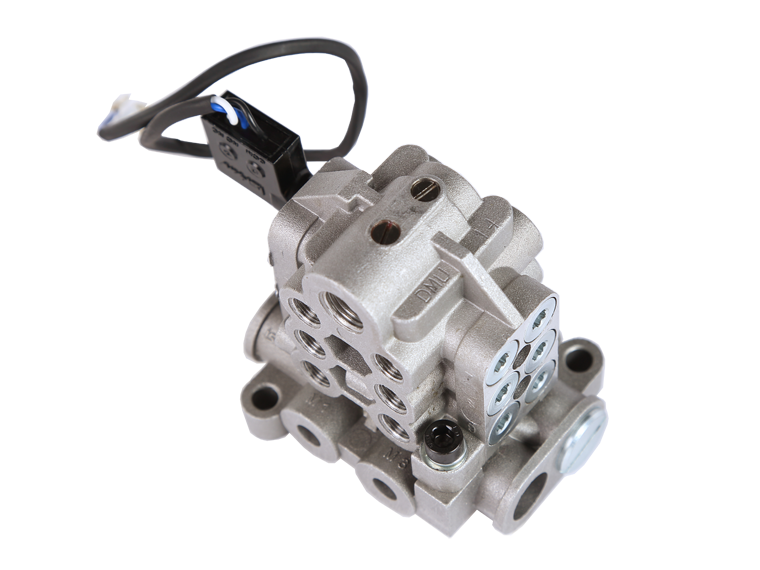

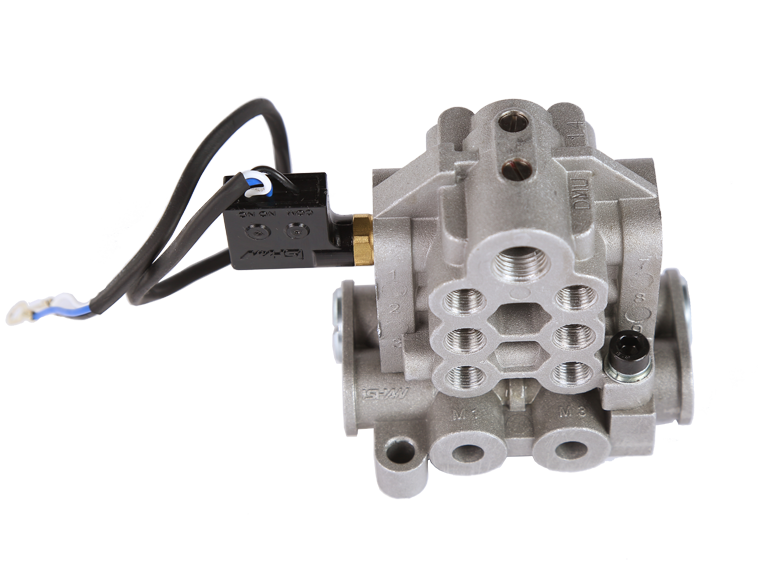

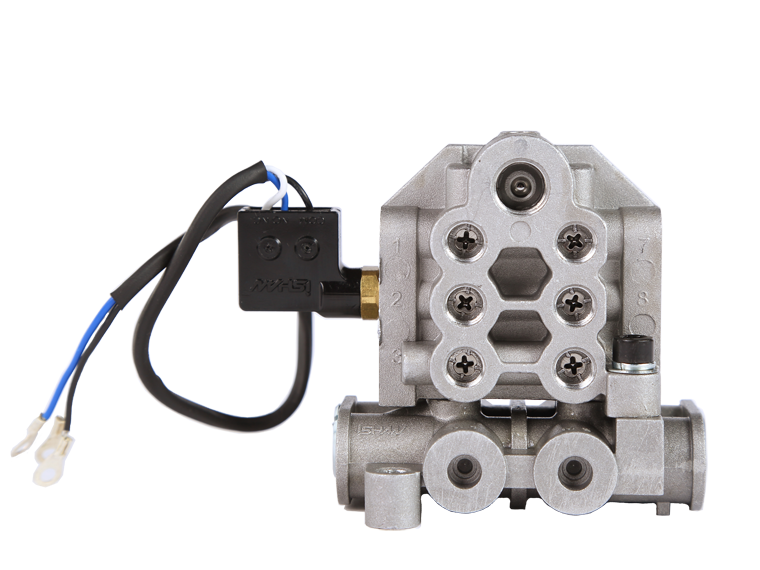

DMU progressive splitter

Performance and characteristics:
The DMU type butter distributor is a new type distributor also known as the mother and child distributor. It is made up of DU distributor and U distributor. It can't be used alone. It is mainly sui

Model:DMU-14

Category:DMU progressive splitter

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Performance and characteristics:
The DMU type butter distributor is a new type distributor, also known as the mother and child distributor. It is made up of DU distributor and U distributor. It can't be used alone. It is mainly suitable for medium voltage and wide temperature changing working conditions, and can be combined with manual, electric or pneumatic lubricator to form single line lubrication system, widely used in small machine tools and plastic mechanical equipment, or as the master distributor of medium single line lubrication system.

Appearance size diagram

Type and technical parameters:
Type Product No. Detection switch Export number Output of
(cc/cy)
H
(mm)
Weight (g)
DMU-6T 20219 X 6 DU:0.3
MU:1.0 1.5 2 3.0
77.2 580
DMU-8T X 8 670
DMU-10T X 10 670
DMU-12T X 12 670
DMU-14T X 14 92.2 800
DMU-16T X 16 800
Note: the DU distributor can be selected to install the knowledge switch.

Specifications and technical parameters:
1.The number of 1. holes is 6 8 10 12 14 and 16.
2.The total volume of 2. spit is 0.3 to 3cc/cyc. The total volume of DU distributor is 0.3cc/cyc and U type distributor has 1 cc/cyc 1.5 cc/cyc 2 cc/cyc 3 cc/cyc four kinds of specifications.
3. with detection or detection switch can be detected or inspecting:
4. equipped with mechanical circulation indicator of the plunger pair the highest circulation rate is less than 60cyc/min:
5.The optimum length configuration of the 5. output pipe diameter is: the length of 4mm is 0.5 ~ 2.5m and the length of 6mm is 1.2 to 3.5m:
6. suitable oil viscosity: #000 ~ 2 lithium base grease.
