Effectiveness and characteristics:
1. The reverse valve can prevent the reflux of lubricating oil.
2, oil, oil, pressure, temperature and change.
3, low cost, good quality and low price.
Application:
1. It is suitable for low pressure lubrication system.
2 with the use of resistance type oil injection machine.
3. Use pressure: 2~20kgf/cm².
4.Oil viscosity (40 C): 20~500cSt.
5 Flow ratio: form each plus one number, and the flow rate is multiplied by multiple.
6 Weight: 11g.
|

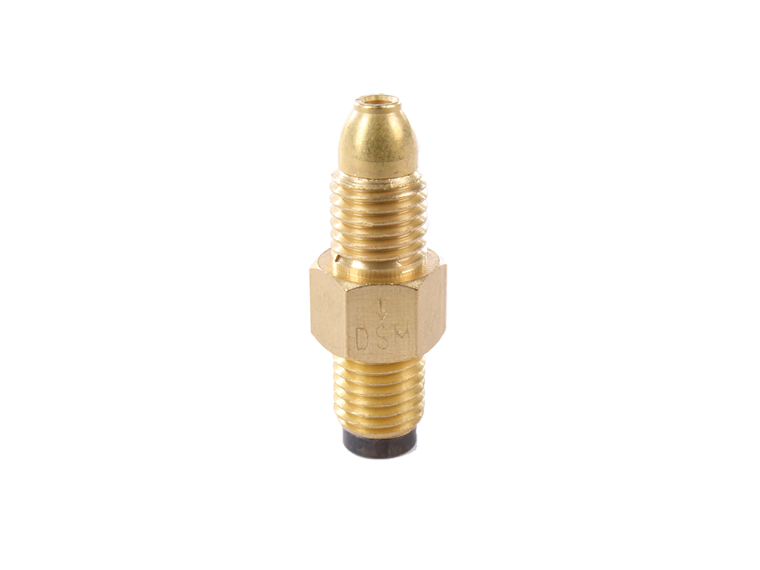

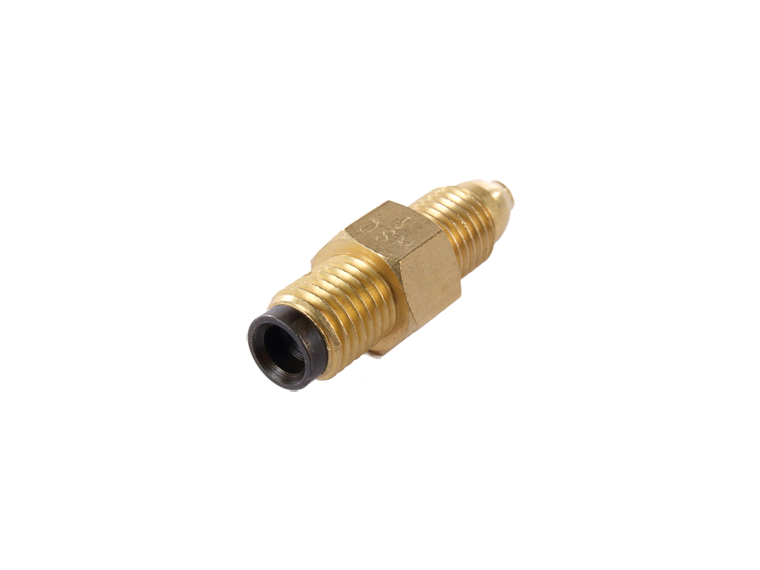

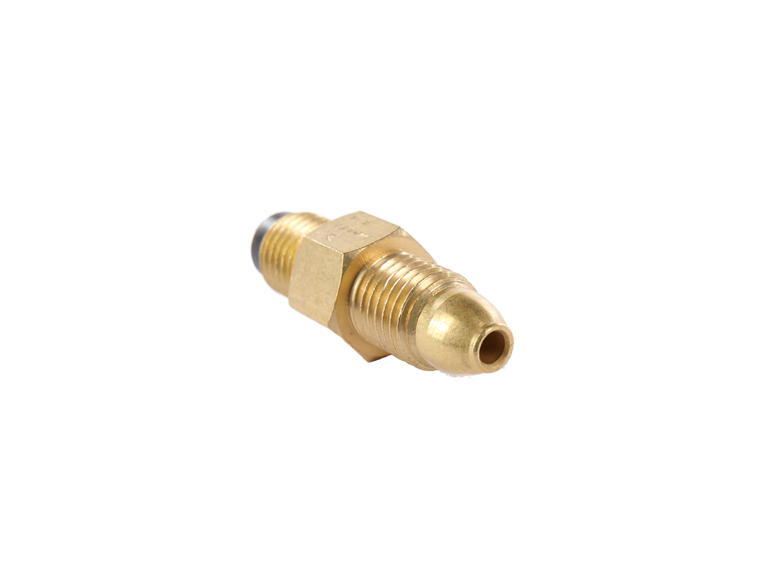

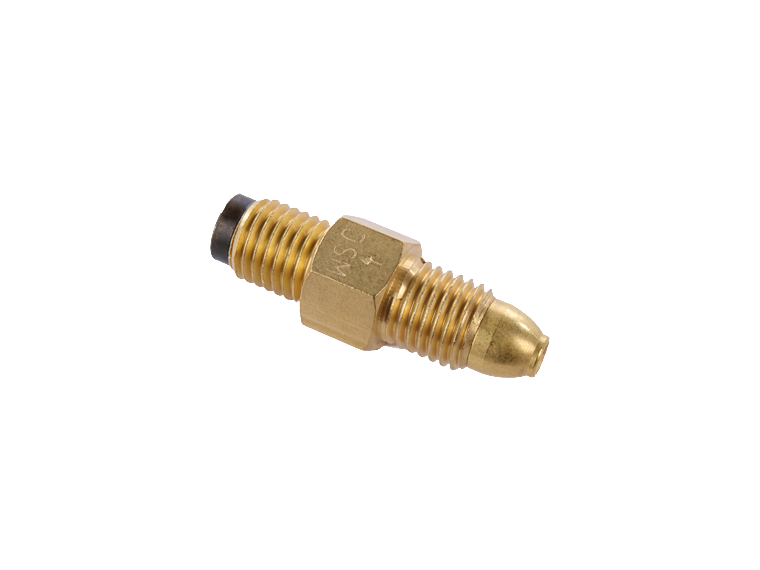

Straight rod proportional joint | ||||||
IN | M8X1.0 | M8X1.0 | |||||
OUT | M8X1.0 | PT1/8 | |||||
Flow ratio | Flow form | DSM-M | DCM-M | ||||
1 | 00 | DSM-00M | DCM-00M | ||||
2 | 0 | DSM-0M | DCM-0M | ||||
4 | 1 | DSM-1M | DCM-1M | ||||
8 | 2 | DSM-2M | DCM-2M | ||||
16 | 3 | DSM-3M | DCM-3M | ||||
32 | 4 | DSM-4M | DCM-4M | ||||
64 | 5 | DSM-5M | DCM-5M |
