Working principle

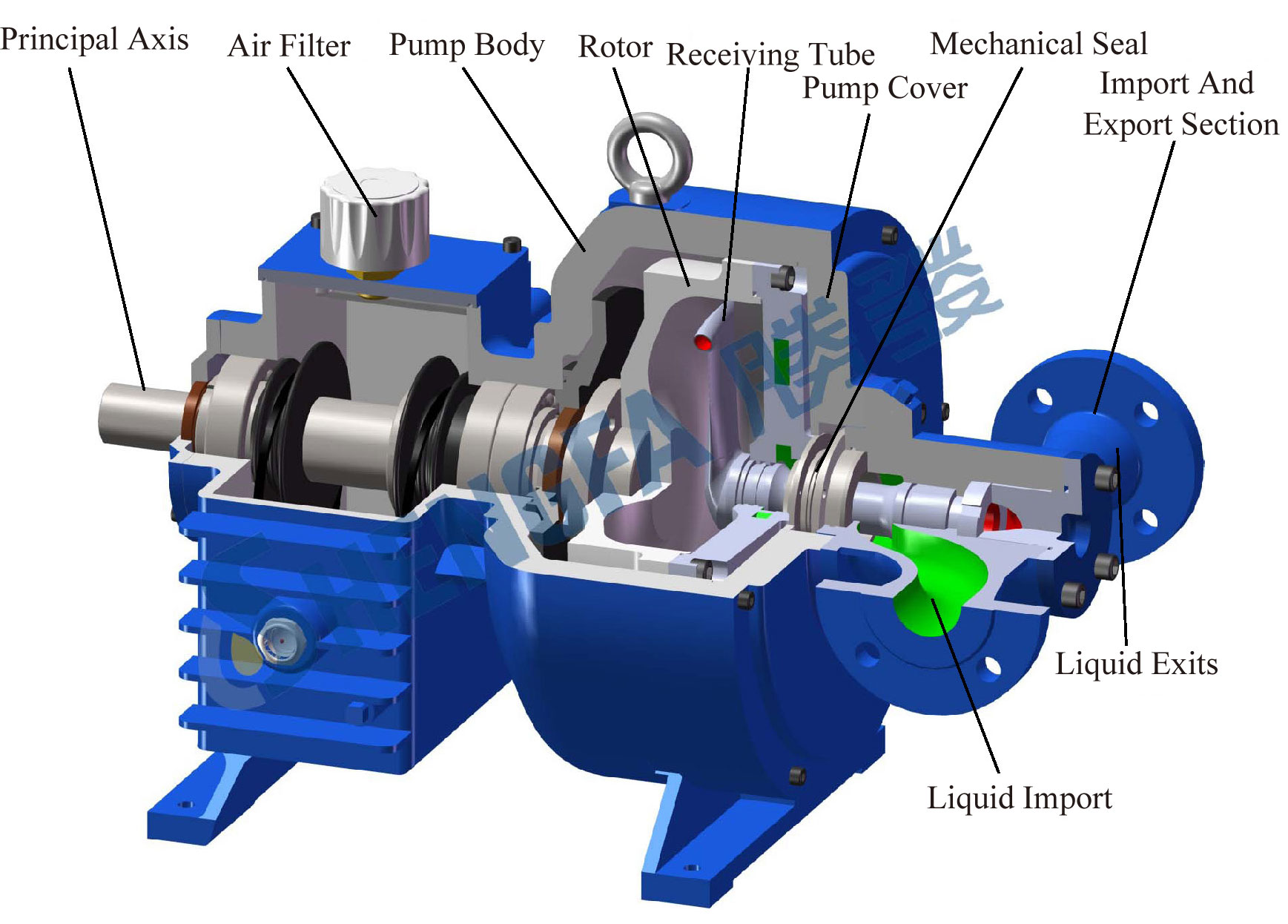

Three dimensional structure diagram:
Working principle：
"Sheng Fa pump industry" is famous for the design of the rotating jet pump. This small flow high lift pump is designed according to the principle of the skin trusteeship (receiving tube). The liquid passes through the low pressure mechanical seal from the inlet of the pump, then enters the rotor rotated into the pump shell, and the liquid is accelerated in the flow passage of the rotor, thus obtaining nearly half the pressure close to the pump outlet. The liquid rotates at the same speed as the rotor and the rotor, and the receiving tube extends from the center of the rotor to the radial direction. There is an entry at the top of its stationary wing surface, where the pressure generated by the centrifugal force and the impact speed generate the maximum pump pressure. The pressure driven liquid through the cavity receiving tube outlet from the pump outlet of the liquid flowing without fluctuation, want to change the pump pressure, only need to adjust the rotor speed, can adjust the receiving tube import size change flow, compared with the ordinary centrifugal pump and reciprocating pump, "Sheng Fa pump" rotating jet pump maintenance the cycle can be extended to 3~4 times, you can greatly reduce the operation cost. "Sheng Fa pump industry" rotary jet pump is the masterpiece of the design!
"Sheng Fa pump industry" is famous for the design of the rotating jet pump. This small flow high lift pump is designed according to the principle of the skin trusteeship (receiving tube). The liquid passes through the low pressure mechanical seal from the inlet of the pump, then enters the rotor rotated into the pump shell, and the liquid is accelerated in the flow passage of the rotor, thus obtaining nearly half the pressure close to the pump outlet. The liquid rotates at the same speed as the rotor and the rotor, and the receiving tube extends from the center of the rotor to the radial direction. There is an entry at the top of its stationary wing surface, where the pressure generated by the centrifugal force and the impact speed generate the maximum pump pressure. The pressure driven liquid through the cavity receiving tube outlet from the pump outlet of the liquid flowing without fluctuation, want to change the pump pressure, only need to adjust the rotor speed, can adjust the receiving tube import size change flow, compared with the ordinary centrifugal pump and reciprocating pump, "Sheng Fa pump" rotating jet pump maintenance the cycle can be extended to 3~4 times, you can greatly reduce the operation cost. "Sheng Fa pump industry" rotary jet pump is the masterpiece of the design!
