Type and technical parameters:

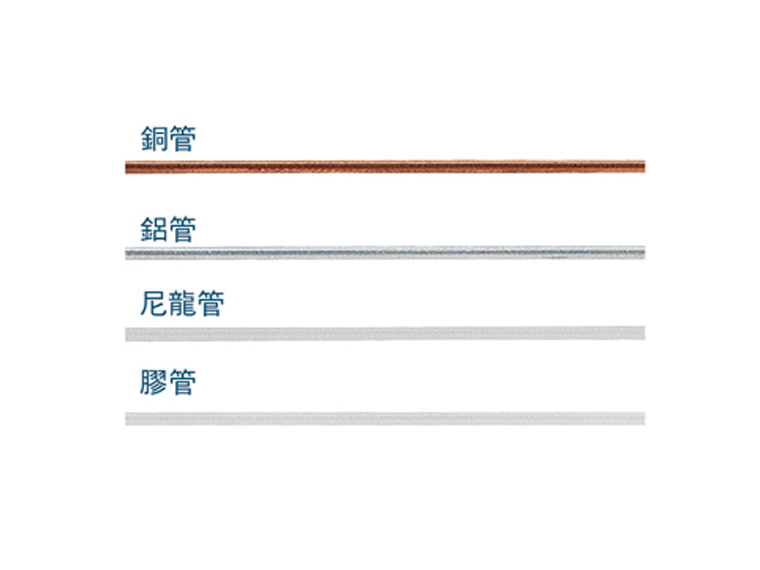

Product	type	Product No.	Specifications
copper tube	P-CP	30301	Outer diameter of tube	Ø4	Ø6	Ø8
			Minimum bending radius	R20	R30	R50
aluminum tube	P-AP	30302	Outer diameter of tube	Ø4	Ø6	Ø8
			Minimum bending radius	R20	R40	R40
nylon tube	P-NP	30304	Outer diameter of tube	Ø4	Ø6	Ø8
			Minimum bending radius	R20	R30	R50
rubber tube	P-PP	30305	Outer diameter of tube	Ø4	Ø6	Ø8
			Minimum bending radius	R20	R40	R40

Note: in the volumetric lubrication system it is recommended that no hose be used.
Standard wall thickness: PP and NP are 1.0mm; AP and CP are 0.8mm.
