YAE-A1 3L

Performance and characteristics:
1. won the EU CE certification.
2. the three mode of open machine can be set:
(a) lubrication: the timing of the lubrication time is first performed when the machine is opened.
(b)

Model:YAE-A1

Category:YAE resistant oil injection machine

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Name specification




Performance and characteristics:
1. won the EU CE certification.
2. the three mode of open machine can be set:
(a) lubrication: the timing of the lubrication time is first performed when the machine is opened.
(b) intermittence: the interval time is executed first.
(c) memory: the time before the start of the machine.
3. lubrication and interval time can be adjusted.
4. is equipped with a liquid level switch. When the oil is insufficient, the wasp will send out an alarm to output the abnormal signal of the liquid level.
The constant pressure function of the 5. pressure relief valve can protect the pump and pipeline to reduce damage.

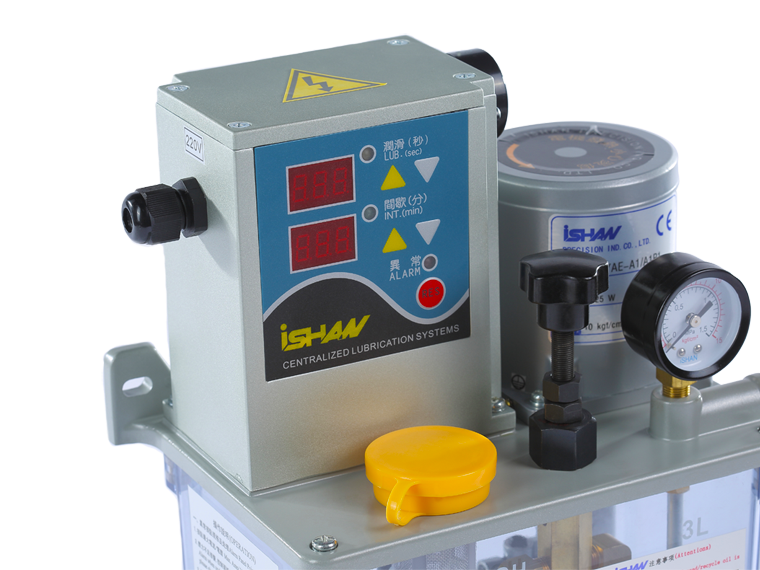

The 6. panel indicator can show the operating code of the oil machine.
7. has a "RES" key, which can be forced to lubricate.
8. lubrication time (second / minute) and interval time (second / minute / time) unit can be selected.
9. can be set according to the number of mechanical action as the basis of intermittent overdue count.
The 10. motor can be operated for a long time.
11. the pressure switch can be used in YAE-A1P1 according to the customer's request.

Scope of application
The YAE type machine is suitable for the centralized lubrication system of machine tools, plastics, textile, light industry, printing and conveyor.

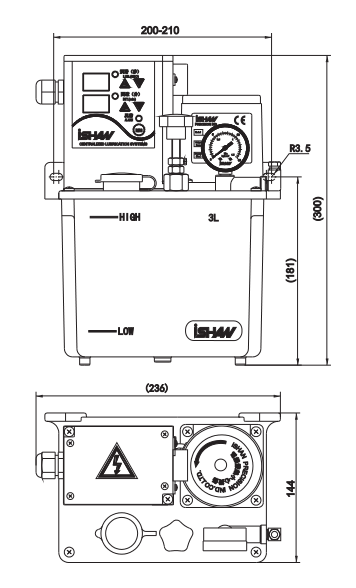

Appearance size diagram:



Type and technical parameters:
  project
type
Product No. Single phase Voltage (VAC) Power (W) Abnormal output connection capacity (A) Lubrication time (second / minute) Interval time
(second / minute / time)
Spit out the caliber Maximum spitting pressure (kgf/cm²) The amount of spitting (cc/min) Pressure switch (kgf/cm²) Oil tank capacity (L) Weight (kg)
YAE-A1 111103 110
or
220
25
or
40
3 1 ~ 999 1 ~ 999 4 10 300
400
No 3L (resin)
4L (resin)
4L (Aluminum alloy)
4.5
4.8
5.2
YAE-A1P1 2.1↑ off

Wiring diagram






Hydraulic schematic diagram
