Name specification
Performance and characteristics:
1. three types of open mode can be set
(A) lubrication: execute the time of lubrication first when you start the machine
(B) intermittence: the interval time is executed first.
(C) memory: the time before the start of the machine.
2. The lubrication and interval time can be adjusted.
3. the lubrication time (second / minute) and the interval time (seconds/minutes/hours) unit can be selected
4. the pressure release of the fixed pressure function can ensure the service life.

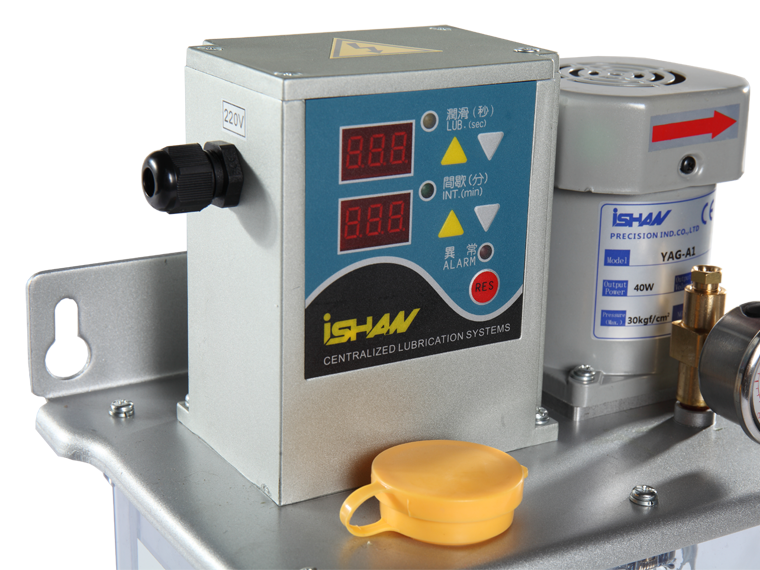

5. The panel screen and the indicator light can show the actuation and abnormal state of the oil injector.
6. with RES "key can be forced lubrication.
7. the pressure switch can be selected freely according to the requirements of the customer without the function of liquid level switch.
8. the motor can be operated for a long time.
Scope of application:
YAG-A type electric injector is widely used in various centralized lubrication systems such as machine tools plastic machinery die-casting machines and so on.
1. three types of open mode can be set
(A) lubrication: execute the time of lubrication first when you start the machine
(B) intermittence: the interval time is executed first.
(C) memory: the time before the start of the machine.
2. The lubrication and interval time can be adjusted.
3. the lubrication time (second / minute) and the interval time (seconds/minutes/hours) unit can be selected
4. the pressure release of the fixed pressure function can ensure the service life.
5. The panel screen and the indicator light can show the actuation and abnormal state of the oil injector.
6. with RES "key can be forced lubrication.
7. the pressure switch can be selected freely according to the requirements of the customer without the function of liquid level switch.
8. the motor can be operated for a long time.
Scope of application:
YAG-A type electric injector is widely used in various centralized lubrication systems such as machine tools plastic machinery die-casting machines and so on.

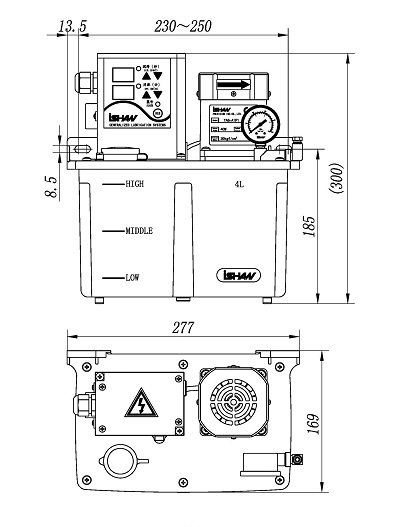

Appearance size
Type and technical parameters:
Type and technical parameters:
|
Product No. | Voltage (VAC) | Power (W) | Abnormal output connection capacity (A) | Lubrication time (second / minute) | Interval time (seconds/minutes/hours) | Spit out the caliber | Maximum spitting pressure (kgf/cm²) | The amount of spitting (cc/min) | Pressure switch (kgf/cm²) | Oil tank capacity (L) | Weight (kg) | ||||
| YAG-A1 | 121106 |
110 220 |
40 | Pressure switch 3 | 1 ~ 999 | 1 ~ 999 | Φ 6 | 30 | 150 | No |
3L (resin) 4L (resin) 4L (Lv Hejin) |
4.5 5.2 6.2 |
||||
| YAG-A1P1 | 2.1↑ off |
Wiring diagram
Hydraulic schematic diagram
