Name specification
Performance and characteristics:
1, three kinds of open mode can be set:
(a) lubrication: the timing of the lubrication time is first performed when the machine is opened.
(b) intermittence: the interval time is executed first.
(c) memory: the time of action before the extension of the machine.
2. The lubrication and interval time can be adjusted.
3. The lubrication time [Second / minute] and interval time [seconds/minutes/hours] unit can be selected.
4. The constant pressure function of the pressure relief valve can ensure the service life.

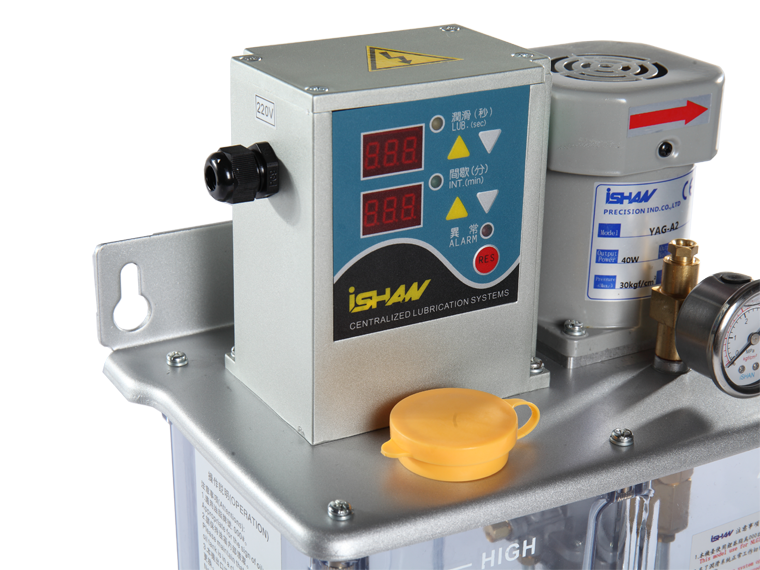

5, the indicator lamp of the panel screen can show the abnormal state of the oil injection machine.
6, there is a "RES" key, which can be forced to lubricate.
7, the pressure switch can be selected freely according to the requirements of the customer, without the function of liquid level switch.
8, the number of mechanical action can be set as the basis of intermittent cycle counting.
9, the motor can be operated for a long time.
Scope of application:Performance and characteristics:
1, three kinds of open mode can be set:
(a) lubrication: the timing of the lubrication time is first performed when the machine is opened.
(b) intermittence: the interval time is executed first.
(c) memory: the time of action before the extension of the machine.
2. The lubrication and interval time can be adjusted.
3. The lubrication time [Second / minute] and interval time [seconds/minutes/hours] unit can be selected.
4. The constant pressure function of the pressure relief valve can ensure the service life.
5, the indicator lamp of the panel screen can show the abnormal state of the oil injection machine.
6, there is a "RES" key, which can be forced to lubricate.
7, the pressure switch can be selected freely according to the requirements of the customer, without the function of liquid level switch.
8, the number of mechanical action can be set as the basis of intermittent cycle counting.
9, the motor can be operated for a long time.

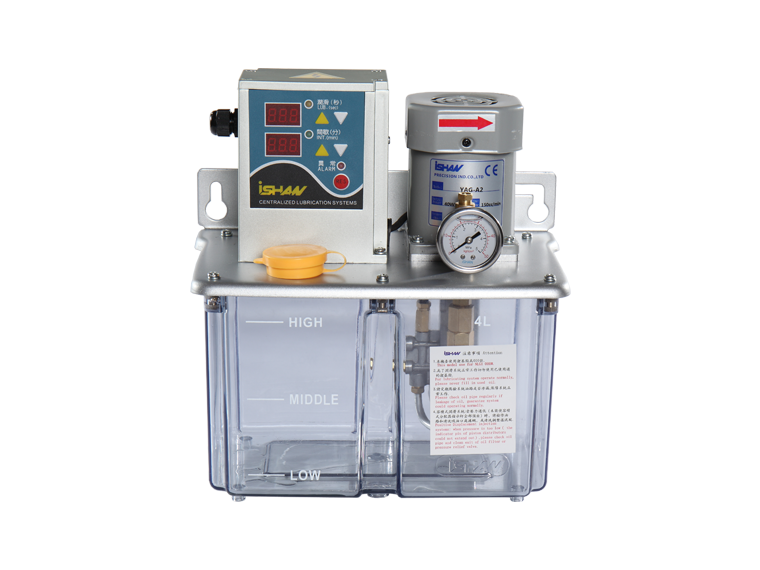

YAG-A type electric injector is widely used in various centralized lubrication systems, such as machine tools, plastic machinery, die-casting machines and so on.

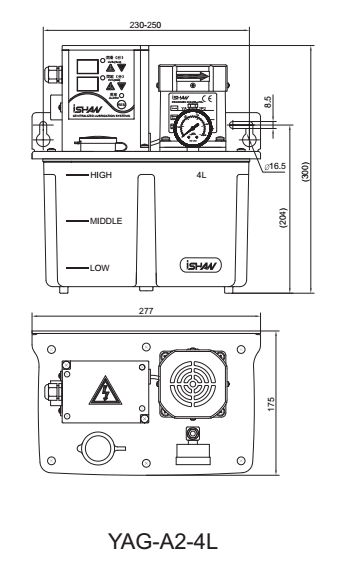

Appearance size diagram:
Type and technical parameters:
|
Product No. | Voltage (VAC) | Power (W) | Abnormal output connection capacity (A) | Lubrication time (Second) | Interval time (seconds/minutes/hours) | Spit out the caliber | Maximum spitting pressure (kgf/cm²) | The amount of spitting (cc/min) | Pressure switch (kgf/cm²) | Oil tank capacity (L) | Weight (kg) | |||||
| YAG-A2 | 122106 |
110 220 |
40 | Pressure switch 3 | 1 ~ 999 | 1 ~ 999 | Φ 6 | 30 | 150 | No | 3L (resin) | 4.5 | |||||
| YAG-A2P2 | 20 | 4L (resin) | 5.2 | ||||||||||||||
| 4L (Lv Hejin) | 6.2 | ||||||||||||||||

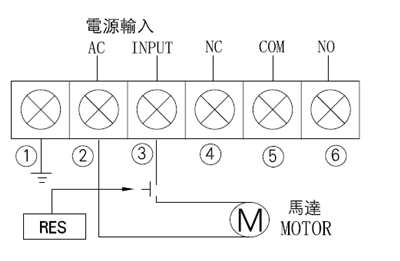

Wiring diagram
Hydraulic schematic diagram
Hydraulic schematic diagram
