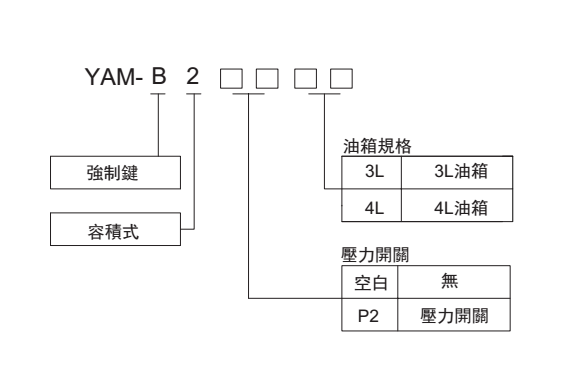

The name rule explains:
Performance and characteristics:
1, the constant pressure function of the pressure relief valve can guarantee the reduction of pump and pipeline damage.
2, the motor can be operated for a long time.

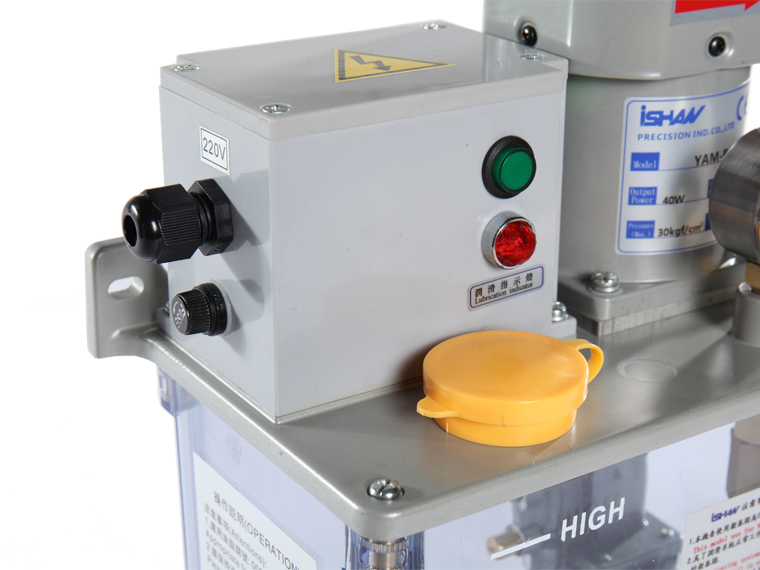

3, equipped with a power indicator lamp, can display the state of the oil injection machine.
4, there is a "FEED" key, which can be forced to lubricate (to be connected with the PLC control system).
5, the pressure switch can be selected freely according to the requirements of the customer, without the function of liquid level switch.
Scope of application:

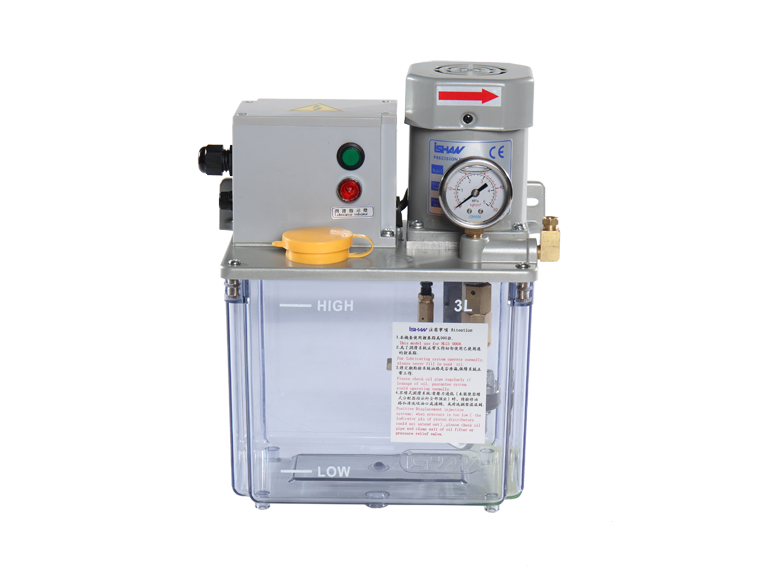

The YAM-B type electric injector is widely used in various centralized lubrication systems such as machine tools plastic machines die-casting machines and so on.

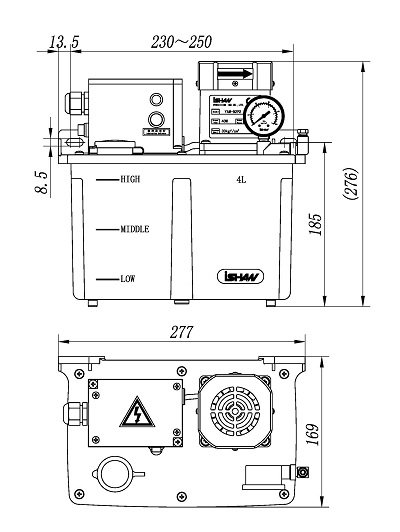

Appearance size diagram
Type and technical parameters:
Type and technical parameters:
|
Product No. | Single phase voltage (V) | Power (W) | Abnormal output connection capacity (A) | Lubrication time | Interval time | Spit out the caliber | Maximum exits (cc/min) | The amount of spitting (cc/min) | Weight (kg) | |||||
| YAM-B1 | 121107 | AC | 40 | Pressure switch 3 | The PLC control system must be connected to the | Φ 6 | 30 | 150 | 4.5 | ||||||
| YAM-B1P1 | 110or220 | 5.2 | |||||||||||||
Wiring diagram:
Hydraulic schematic diagram:
Hydraulic schematic diagram:
