Performance and characteristics:
1 YBP is a lubricating oil injection machine which uses compressed air as a power source for piston mechanism.
2. Pneumatic two parts solenoid valves and volumetric distributor in the machine.
3.The PLC system on the main engine controls the solenoid valve to control the oil supply period of the lubricating system.
4. There is a liquid level switch in the machine platform which can output the abnormal signal of liquid level and also have automatic pressure unloading mechanism stop action of lubricating pump and automatic pressure relief of the system.

Scope of application
The YBP type machine is suitable for high speed and high precision machinery.

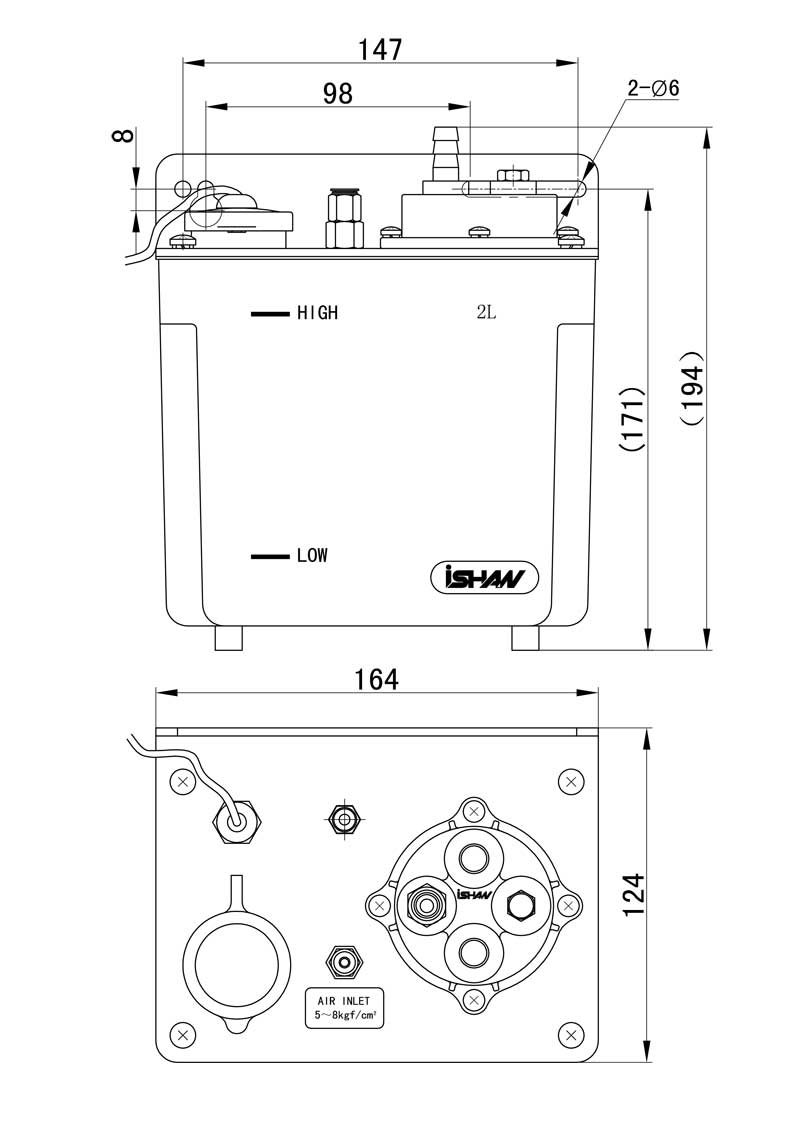

Appearance size diagram

Type and technical parameters:

Project Type		Product No.	Inlet pipe diameter	Spit out the caliber	Rated oil discharge (cc/cy)	Gas source pressure (kgf/cm²)	Turbocharging ratio	Maximum working frequency (cy/min)	Oil back	Oil tank capacity (L)	Weight (kg)
YBP-K2		112301	Ø 4	4	2.8 (2L)	5 ~ 8	4:1	10	Must be selected	2L (resin)	1.4
					6.0 (3L)					3L (resin)	2.0
