Performance and characteristics:
1, three kinds of open mode can be set:
(a) lubrication: the timing of the lubrication time is first performed when the machine is opened.
(b) intermittence: the interval time is executed first.
(c) memory: the interval time is executed first when you start the machine.
2. The lubrication and interval time can be adjusted.

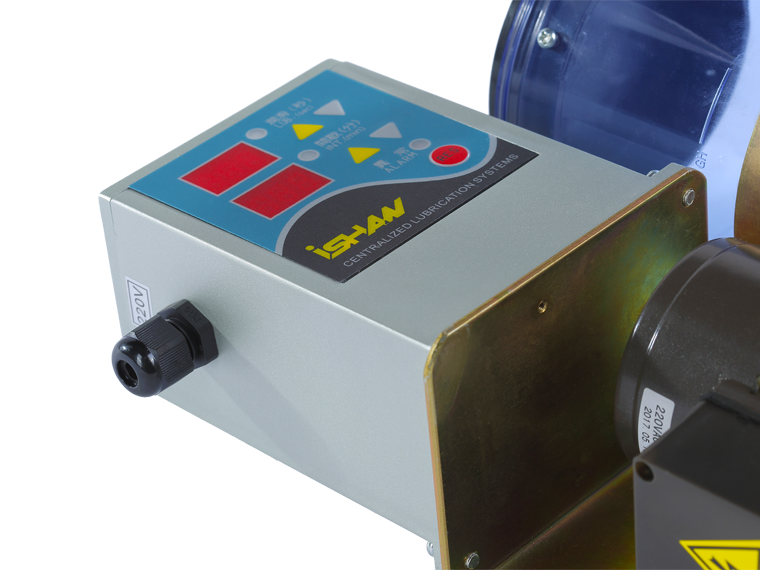

3, the panel indicator can show the actuating state of the oil injection machine.
4. The constant pressure function of the pressure relief valve can ensure the service life.
5, the lubrication time (second) and the interval time (sub / time / time) unit can be selected.
6, there is a "RES" key, which can be forced to lubricate.
7. The "action detection mode" can be set up with the progressive distributor
On the check switch connection, an abnormal action alarm (display code E-A) is issued.

Scope of application:

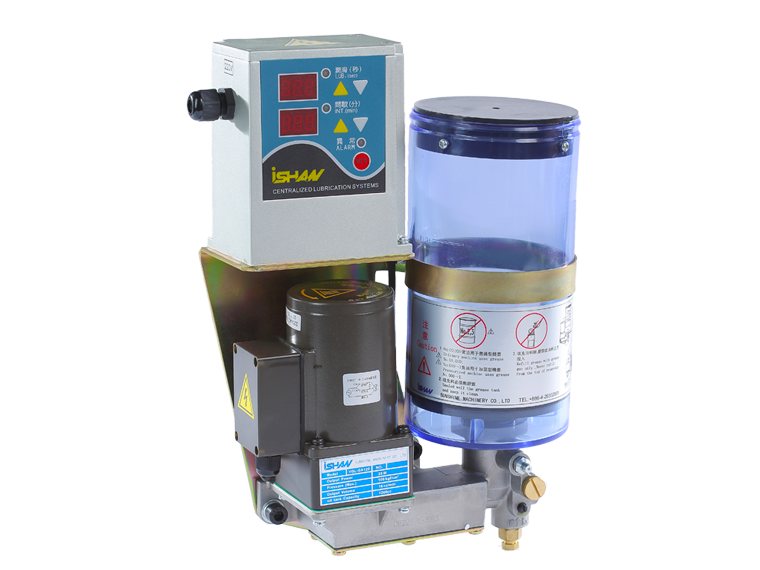

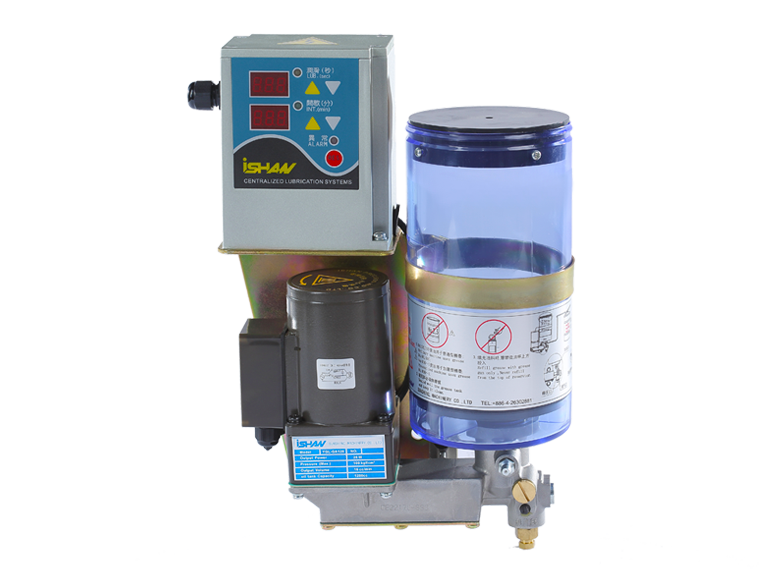

The YGL-G type electric injector is widely used in engineering transportation machine tool textile light industry forging and other machinery.

Appearance size diagram: Type and technical parameters:

project type

Voltage (VAC)

Power (W)

Lubrication time (SEC)

Batch time (min)

Spit out the caliber

Maximum spitting pressure (kgf/cm2)

The amount of spitting (cc/min)

Liquid level switch

Pressure gauge

Oil capacity (CC)

Weight (kg)

YGL-GA08 YGL-GA12 YGL-GA20

110 or 220

25

1~999

1~999

Ø6 or Ø8

100

20

Must be selected

800 1200 2000

3.2 3.9 4.5

Wiring diagram:
