Performance and characteristics:
1: each lubrication time and intermittent time can be set separately through IC board;
2: each single hole can realize automatic work according to the set program
3: the amount of oil can be controlled by setting the working time of pneumatic pump;
4: with a mandatory key each point can be forced out of oil;
5: the single hole pressure can be displayed by the pressure gauge;
6: has overpressure and low liquid level stop and acoustic-optic alarm function;
7: suitable for oil product: 1: 00 #2# grease.
Scope of application:

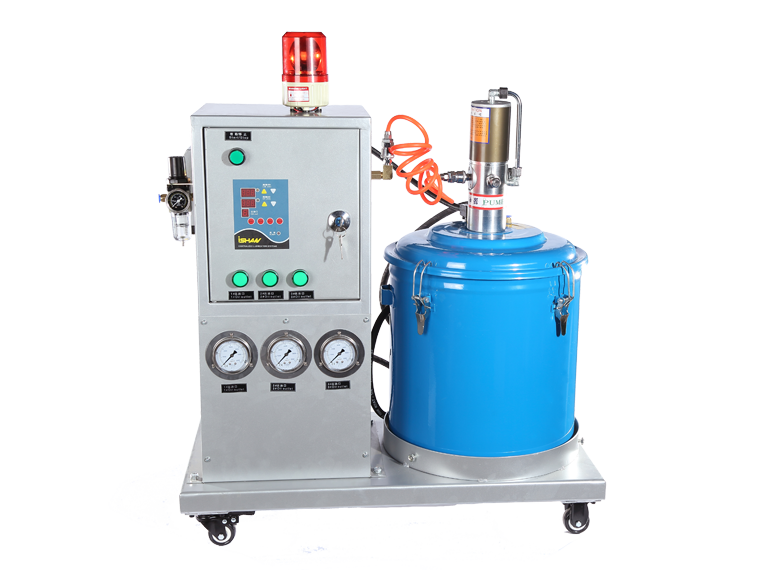

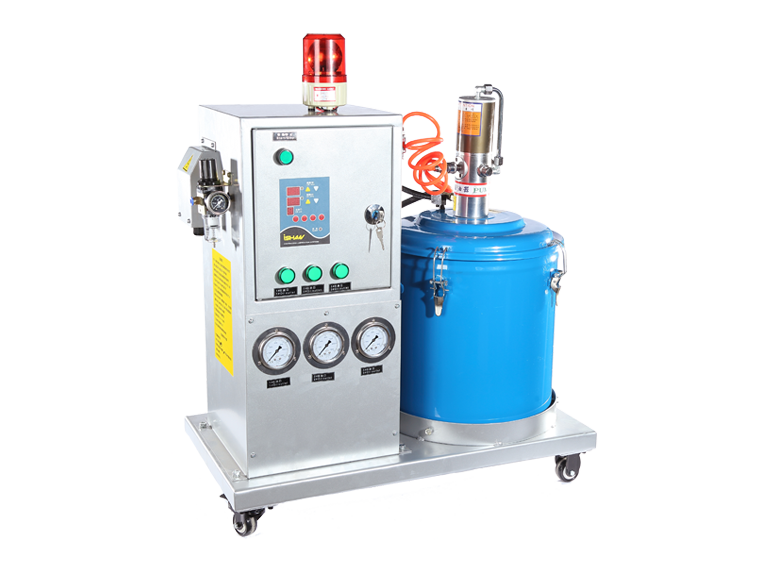

YGP-A type electric injector is specially designed for feed pellet machine and other heavy equipment which need few lubrication points can be selected.
1: each lubrication time and intermittent time can be set separately through IC board;
2: each single hole can realize automatic work according to the set program
3: the amount of oil can be controlled by setting the working time of pneumatic pump;
4: with a mandatory key each point can be forced out of oil;
5: the single hole pressure can be displayed by the pressure gauge;
6: has overpressure and low liquid level stop and acoustic-optic alarm function;
7: suitable for oil product: 1: 00 #2# grease.
Scope of application:
YGP-A type electric injector is specially designed for feed pellet machine and other heavy equipment which need few lubrication points can be selected.
Appearance size diagram
Type and technical parameters:
|
article number | Voltage（V) | Number of oil holes | Displacement |
working air pressure (bar) |
Rated pressure（MPa） |
Lubrication time （s） |
Intermittent time （s/min/h） |
capacity of iron drum （L） |
||||
| YGP-A | 121303 |
Single phase220V three-phase380V |
2～4 | 13cc/s | 5～7 | 35 | 1～999 | 1～999 | 30 | ||||
| YGP-AD | 0.5～5.5cc/cyc | 16 |
hydraulic schematic diagram
