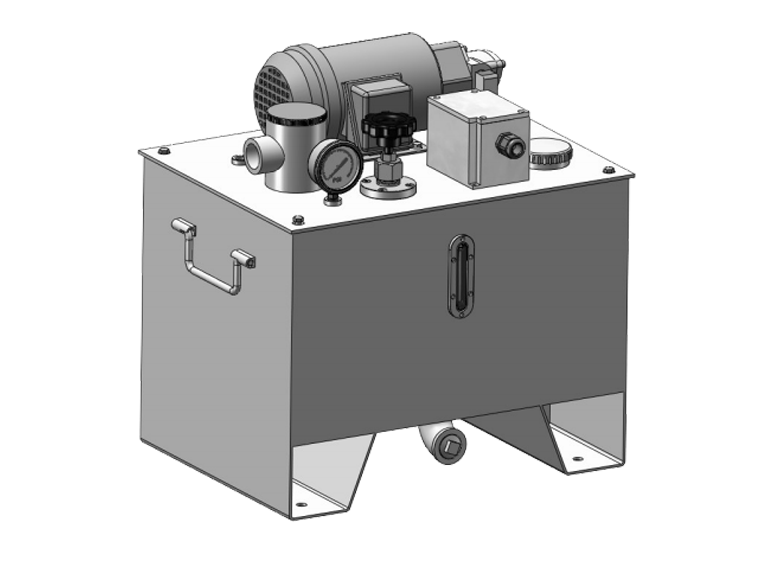

Name specification
Performance and characteristics:
1: the working pressure can be adjusted and displayed by the pressure gauge;
2: pressure can be detected by pressure switch and output by electrical signal;
3: the liquid level switch can output the abnormal liquid level signal;
4: oil can be recycled to save oil;
5: the oil return port is provided with a return oil magnet set and a filter screen to ensure the cleanliness of the return oil;
6: suitable for oil product VG30 150cSt.
Scope of application YLB machine is suitable for resisting system circulatory system providing reliable lubrication guarantee for machine tool injection molding machine etc. According to customer's different requirements it can be designed. Manufacturing various lubricating stations.

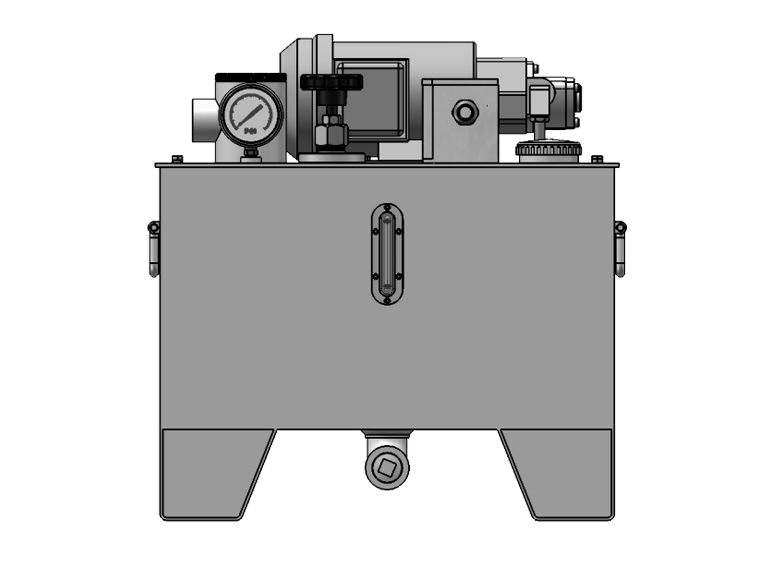

Appearance size diagram
Type and technical parameters:
|
project |
article number | supply voltage | horsepower |
nominal flow rate |
throw out the caliber | rated pressure | pressure switch | liquid level switch | fuel tank capacity | L | W | H | L1(*W1) | |
| type | (V) | （HP) | (L/min) | (mm) | (kgf/cm²) | (kgf/cm²) | (L) | (mm) | (mm) | (mm) | (mm) | |||
| YLB | 110110 |
one way110 one way220 three-phase220/380 |
1/4 |
2.2 3.7 5.2 |
φ6 φ8 φ10 |
5 | 2.1↑off | Down current |
20L(me |
460 | 350 | 220 | 370(*260) | |
|
30L(me |
260 | |||||||||||||
|
40L(me |
340 | |||||||||||||
|
60L(me |
310 | 500(*350) | ||||||||||||
|
80L(me |
600 | 450 | 390 | |||||||||||
|
100L(me |
460 | |||||||||||||
Appearance size diagram
