Performance and characteristics:
1 automatic circulation oil injection smooth.
2 the Phoenix cooling system to cool the oil.
3. The alarm signal output is provided with pressure blockage and non-oil supply check.
Scope of application:
YLS-Z air-cooled circulating system is specially designed for three-way circulating gear box and is now used in large feed granulator.

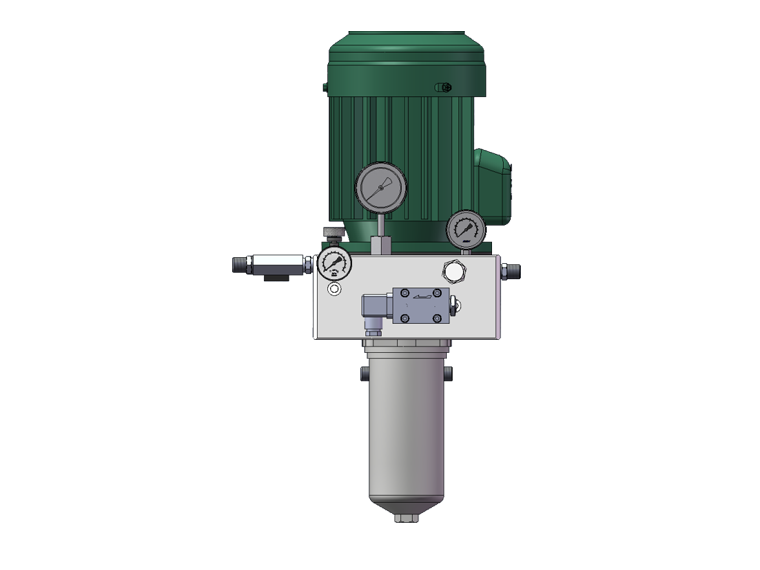

Appearance size diagram
Specifications and technical parameters:
|
article number |
voltage |
power（KW） | number of poles |
Spit pressure ( kgf/cm2) |
Displacement ( L/min ) |
Number of oil outlet |
Differential pressure transmitter ( kgf/cm2) |
Oil flow detection switch( L/min) | Air cooler | Application of oil | |||||
| YLS-Z | 110100 | three-phase220/380 | 0.75 | 4 | 2～10 | 7 | 3 | 3.5 | 0.5 | 150W | ||||||
| uniphase220V | N32～N220 | |||||||||||||||
| withstand voltage20kgf/cm2 | ||||||||||||||||
hydraulic schematic diagram
