PRODUCT

YSC multi-function cooling and lubricating sprayer

Performance and characteristics:
1. special nozzle design the injection angle and range of the nozzle can be adjusted manually (YSC-S exclusive)
2. in the process of processing cooling lubrication blowing metal chips can be

Model:YSC

Category:YSC oil mist generator

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Performance and characteristics:

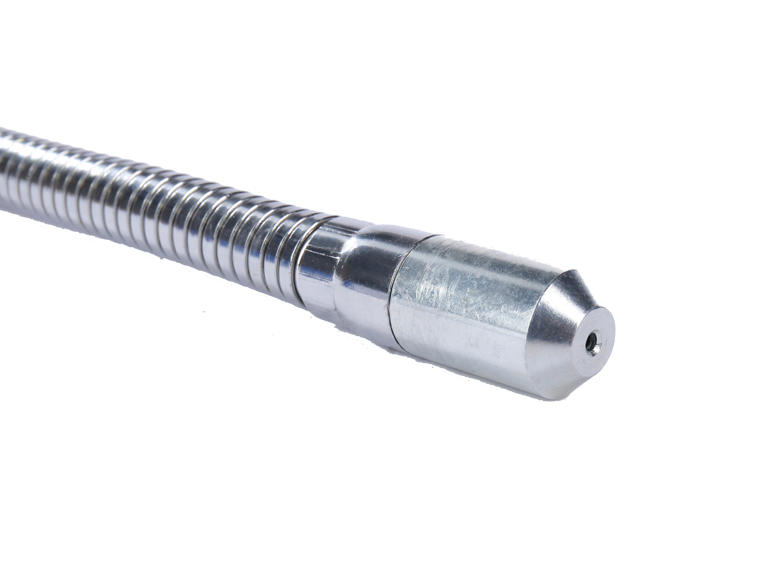

1. special nozzle design, the injection angle and range of the nozzle can be adjusted manually (YSC-S exclusive)
2. in the process of processing, cooling, lubrication, blowing metal chips can be completed once.
3. can improve processing speed, save processing time and cost, and reduce tool wear.
4. helps to ensure the quality of the processing and the best use of the tool.
5. when processing alloy or super hard material, it can also achieve smooth and high precision surface.
6. increase the density, avoid internal leakage and prolong service life.
7. for different fixations, choose different parts and use them.

Scope of application
The YSC multi-function sprayer applies the principle of vacuum self suction to make the liquid atomized through the nozzle and air and spray it to the lubricating points such as the machining parts the cutting tools or the bearings. The product is suitable for machine tool drilling machine tapping machine cutter grinding machine punch press sawing machine feed machine and so on.

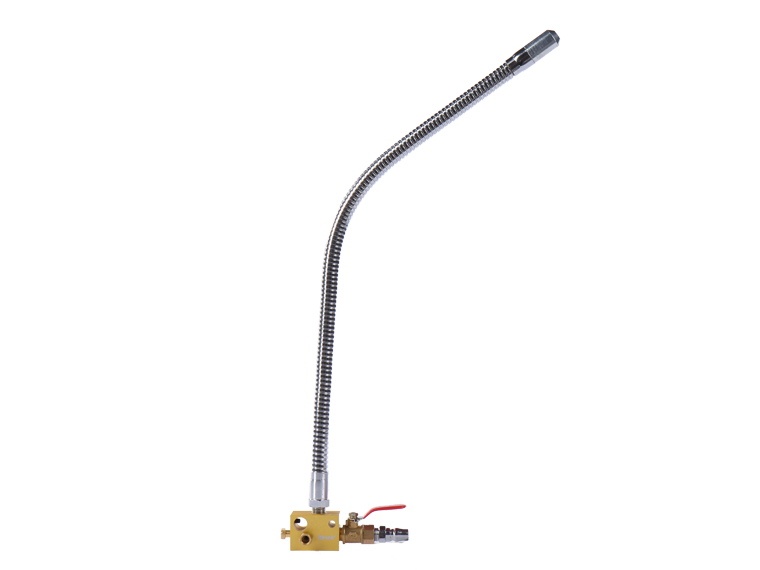

YSC-U single point sprayer application example:
Type and technical parameters:
Type The air pressure range (kgf/cm2) Suitable medium viscosity (cSt) The maximum output of
(cc/min)
Nozzle form The weight of
(g)
YSC-U-1 5 ~ 7 0 ~ 68 Water: 16
R32 oil: 7
Non tunable 750
YSC-S-1 Tunable 240
