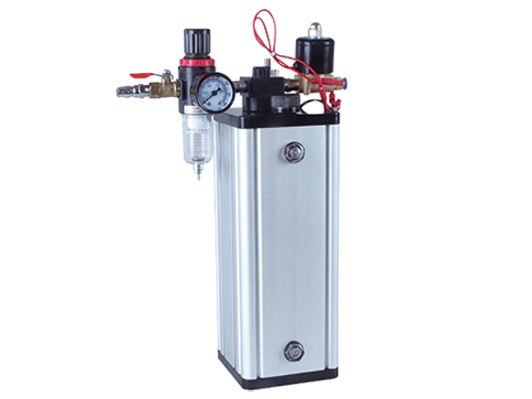

Spray oil injection machine YSM-K

Performance and characteristics:
1. A liquid level switch is provided to output the abnormal signal of the liquid level.
2. At the same time it provides cooling lubrication and removing dandruff at once to improve the productio

Model:YSM-K

Category:YSM-K oil mist injection machine

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Performance and characteristics:
1. A liquid level switch is provided to output the abnormal signal of the liquid level.
2. At the same time it provides cooling lubrication and removing dandruff at once to improve the production speed and reduce the mechanical wear.
3. The cooling effect of the oil content in the adjustable gas is good.

Scope of application:
The YSM-K type machine is suitable for the lubrication of high speed and high precision machinery.

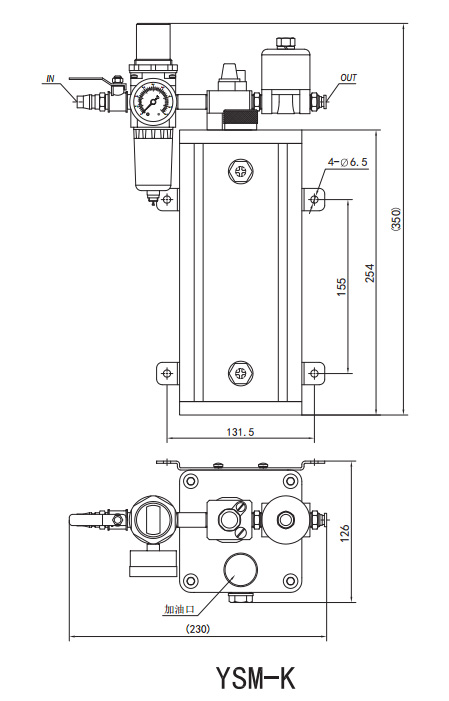

Appearance size diagram
Type and technical parameters:
  project
type
Input pressure range Application of oil viscosity Oil mist exit Liquid level switch Solenoid valve voltage Oil tank volume Maximum spitting pressure Air consumption Oil mist (adjustable)
YSM-K 0.4 ~ 0.7MPa 20 ~ 100cSt Ø 6 Lower power (NO) AC 220V 1.8L 0.7Mpa 25000ml/min 0 ~ 480ml/h
