Performance and characteristics:
1. strengthen the type sealing device the gas block does not turn the card in the cup.
2. the oil will not be left in the cup.
3. The oil outlet can be installed on the right or left side according to the installation of the pipeline.
4. The butter can be filled with manual or electric butter. (butter bar).
5. A manual depressurized device is set up.
Scope of application:

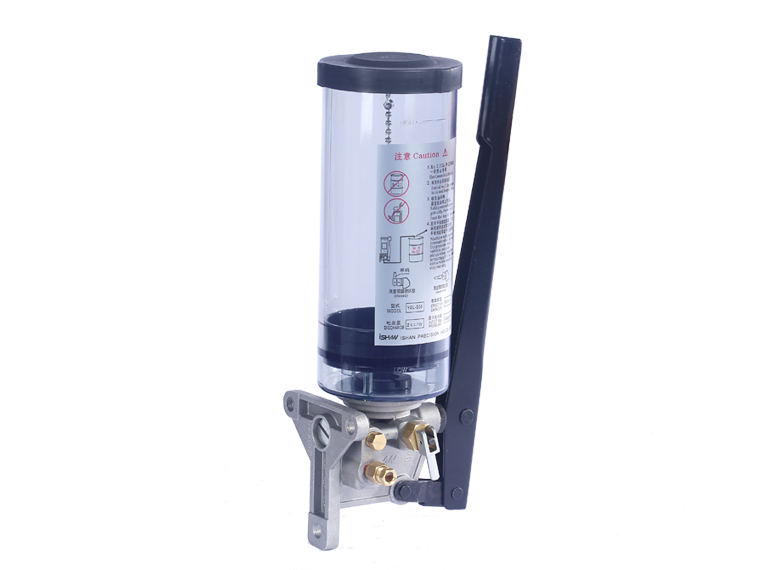

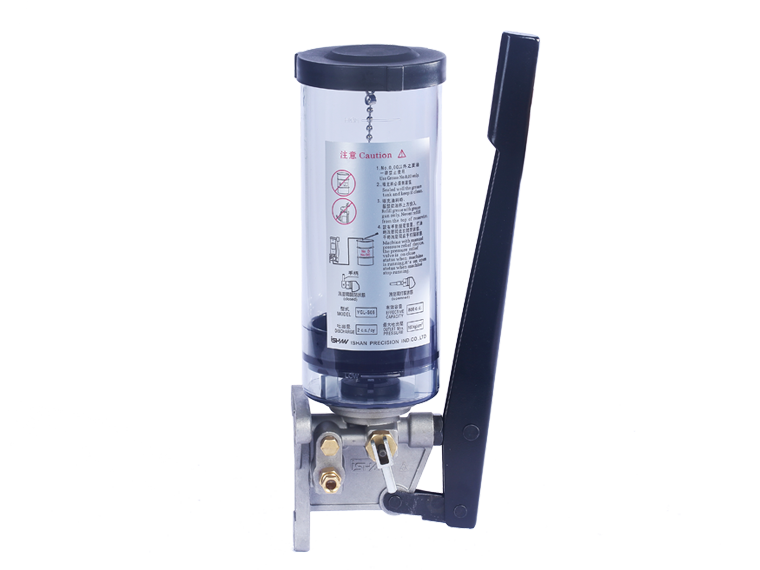

YGL-S manual grease lubrication pump can be used for volumetric system, which is suitable for small and medium-sized machinery and equipment, such as construction machinery, textile, printing, machine tools and other machinery.
2. the oil will not be left in the cup.
3. The oil outlet can be installed on the right or left side according to the installation of the pipeline.
4. The butter can be filled with manual or electric butter. (butter bar).
5. A manual depressurized device is set up.
Scope of application:
YGL-S manual grease lubrication pump can be used for volumetric system, which is suitable for small and medium-sized machinery and equipment, such as construction machinery, textile, printing, machine tools and other machinery.
Appearance size diagram
Type and technical parameters:
|
Product No. | The amount of spitting (cc/cy) | Maximum spitting pressure (kgf/cm2) | Spit out the caliber | Oil capacity (CC) | Weight (kg) | |||||
| YGL-S04S | 122205 | 1 | 100 | Ø 6 | 400 (butter bar) | 2.3 | |||||
| YGL-S08 | 800 | 1.9 | |||||||||
| YGL-S12 | 1200 | 2.2 | |||||||||
| YGL-S20 | 2000 | 2.4 | |||||||||
