Name specification

Performance and characteristics:
1. CE certification obtained.
2. Equipped with “RES” button , which has a function of forced lubrication.
3. Lubrication time ≤2min, intermittent time ≥3min.
4. Three boot modes as below:
  * lubrication: run lubrication time when power-on
  * intermittence: run intermittent time when power-on
  * memory: run the previous operation when power-on
5.  Lubrication time & intermittent time can be adjusted.
6.  When the lubricant is insufficient, the level switch will send a signal.
7.  The motor has self-protection device to prevent from overheating and overloading.
8.  The constant pressure function of pressure relief valve can protect the pump and pipeline to reduce damage.
9.  The positive displacement system is equipped with pressure relief device.
10.  Lubrication time unit( second) & intermittent time unit( second/ minute/ hour) can be adjusted.

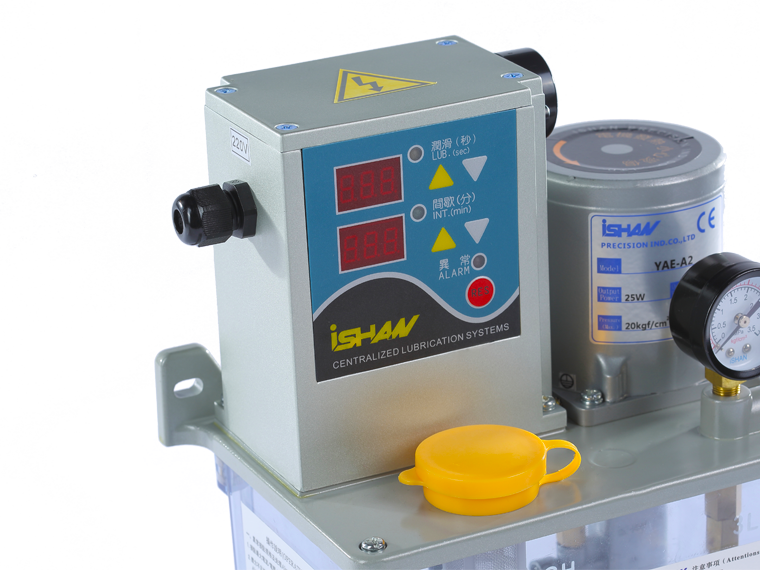

11.  The indicator light on the panel can show the operating state of the lubricator.
12.   YET-A2P2 type is equipped with pressure switch.

Scope of application
Suitable for the centralized lubrication system of machine tools, plastics, textiles, light industry, printing, conveyor and other mechanical equipment.
