Performance and characteristics:
1. A liquid level switch is provided to output the abnormal signal of the liquid level.

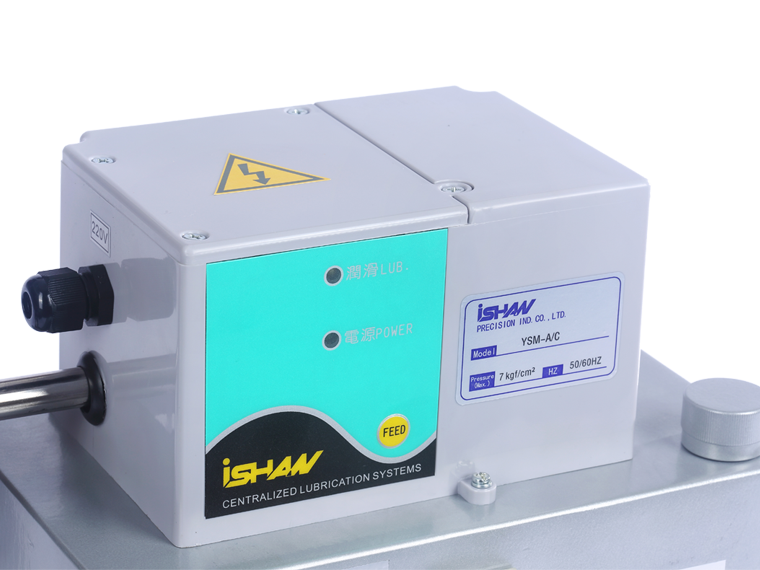

2, the panel indicator can show the actuating state of the oil injection machine.
3. At the same time, cooling, lubrication, and chip removal are improved at the same time.
Production speed reduces mechanical wear.

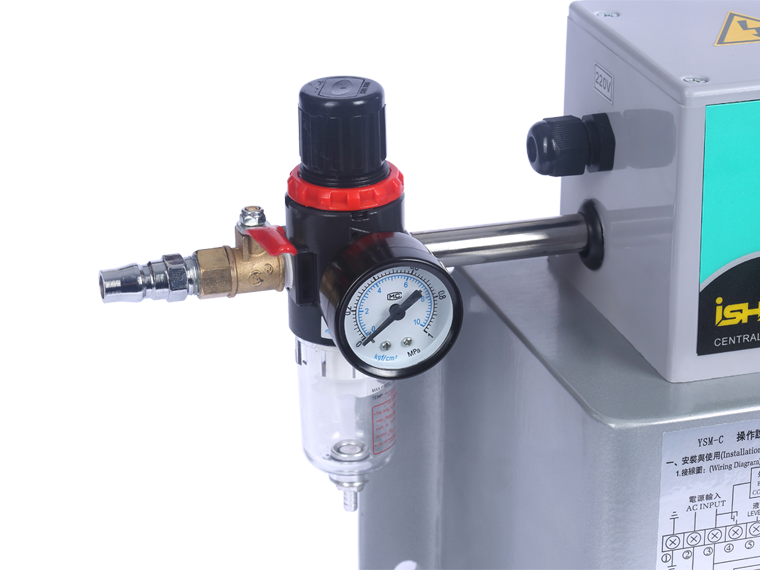

4. The size of the oil content in the gas can be adjusted.
5. The cooling effect is good.
6. It is suitable for high speed and high precision mechanical use.
Scope of application
The YSM type machine is suitable for high speed and high precision machinery.
Appearance size diagram
Type and technical parameters:
Type and technical parameters:
|
Product No. | Lubrication time (0.1 seconds / sec) | Interval time (second / second / second) | Single phase voltage (VAC) | Output connection capacity (A) | Spit out the caliber | Gas pressure range (kgf/cm2) | Particle size after atomization (µ m) | Liquid level switch | Weight (kg) | |||||
| YSM-C | 110302 | To be and PLC control system connection |
110 Or 220 |
0.3 (liquid level switch) | Ø 6/Ø 8 | 3 ~ 5 | 4 ~ 10 | O (lower power) | 10.1 | ||||||
