Performance and characteristics:
1. three kinds of open mode can be set:
(a) lubrication: the timing of the lubrication time is first performed when the machine is opened.
(b) intermittence: the interval time is executed first.
(c) memory: the time before the start of the machine.
2. the lubrication and interval time can be adjusted the minimum unit of lubrication time is 0.1 seconds.
3. there is a liquid level switch when the oil is insufficient the buzzer will send out an alarm to output the abnormal signal of the liquid level.
4. the number of mechanical action can be set as the basis of intermittent cycle counting.

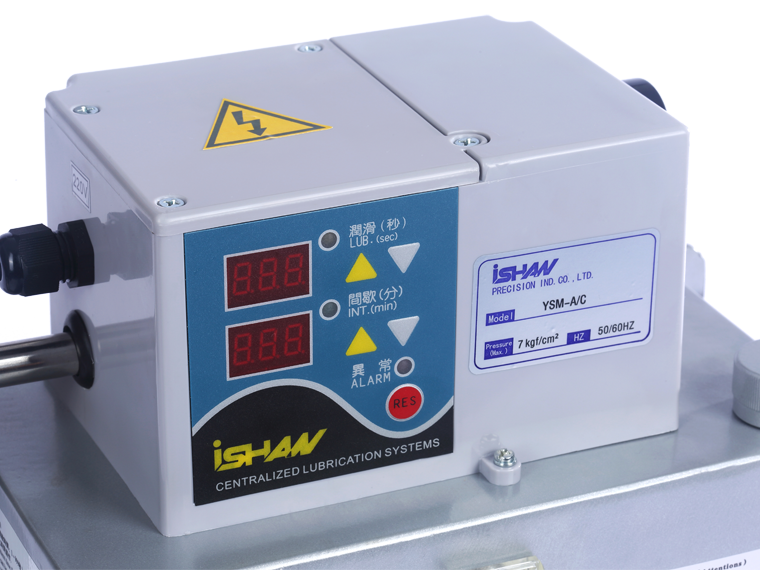

5. the panel screen and the indicator light can display the actuation and abnormal state of the oil injector.
6. At the same time it provides cooling lubrication and removing dandruff once so as to improve the production speed and reduce the mechanical wear.

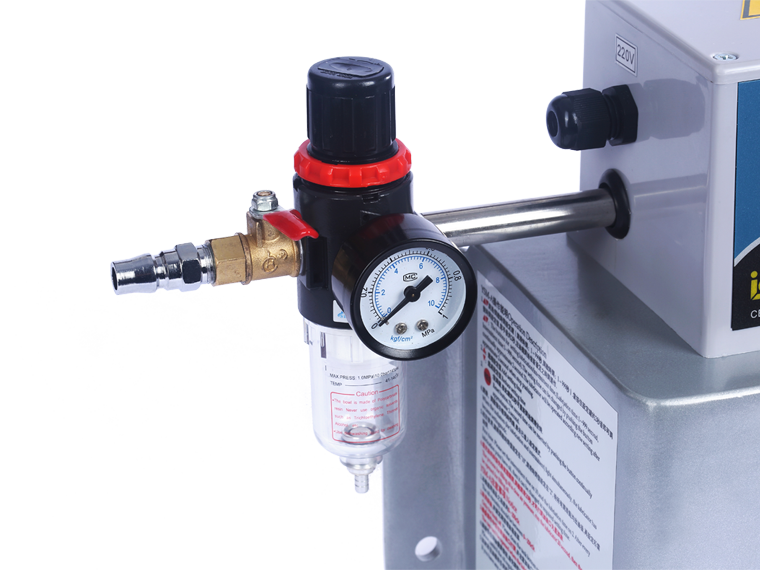

7. The size of the oil content in the gas can be adjusted.
8. The cooling effect is good.
9. It is suitable for high speed and high precision mechanical use.
10. if the work pressure is kept at 3kgf/cm² the demand wind volume is about 31L/min.

Scope of application:
The YSM type machine is suitable for high speed and high precision machinery.
