Suitable for high sealing conditions, flushing and isolating machine seals

The inlet pressure is less than 1.5Mpa.

Flow: 1~11m3/h

Lift: 55~300m

Speed range: 4000rpm

Maximum efficiency: 55%

Matching power: 4~22kw

Pump head size: 526*378*472 (L*W*H)

Weight of pump head: 79~92kg


Imported supporting flange: DN32

Exit matching flange: DN25


Overflow component material selection


Please contact us for the specific appearance and size of the installation

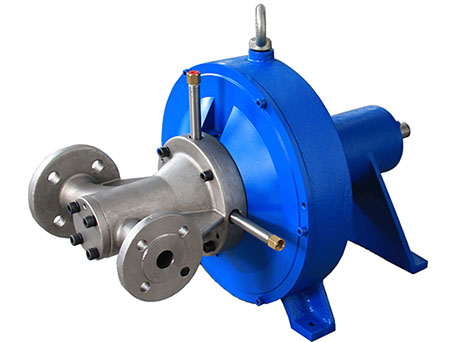

Name	SX-2 series rotary jet pump
Model	SX-2D
Description	Suitable for high sealing conditions flushing and isolating machine seals The inlet pressure is less than 1.5Mpa. Flow: 1~11m3/h Lift: 55~300m Speed range: 4000rpm Maximum efficiency: 55% Matching power: 4~22kw Pump head size: 526*378*472 (L*W*H) Weight of pump head: 79~92kg Imported supporting flange: DN32 Exit matching flange: DN25 Overflow component material selection Please contact us for the specific appearance and size of the installation

Imported supporting flange: DN32

Exit matching flange: DN25


Overflow component material selection


Please contact us for the specific appearance and size of the installation

1、	The supply cycle indicates that the supply cycle of the whole pump is 2 to 3 months, and the spare parts are about 1 months, due to the difference of the specific working conditions (the material and electric motor of the pump will change due to the change of working conditions).
2、	Medium condition: when ordering products, please provide detailed medium parameters (composition and content, temperature, specific gravity, viscosity, etc.).
