The inlet pressure is less than 1.5Mpa.

Flow: 1~11m3/h

Lift: 55~300m

Speed range: 4000rpm

Maximum efficiency: 55%

Matching power: 4~22kw

Pump head size: 526*378*472 (L*W*H)

Weight of pump head: 79~92kg


Imported supporting flange: DN32

Exit matching flange: DN25


Overflow component material selection


Please contact us for the specific appearance and size of the installation


The advantages of comparison with SX-2Z:

1, the pump head and the motor independent, can be separate to the pump head part of the cooling without affecting the motor, suitable for higher temperature.

2. It is easier to change the working condition after the production process is changed

If the flow head becomes larger, motor power purchase is not sufficient margin you must replace the motor, SX-2Z/2SZ motor replacement need to replace many of the components and the need to disassemble the pump, SX-2/2S only need to replace the base and the coupling (such as general words and base coupling can not change), without removing the pump is simple to deal with.

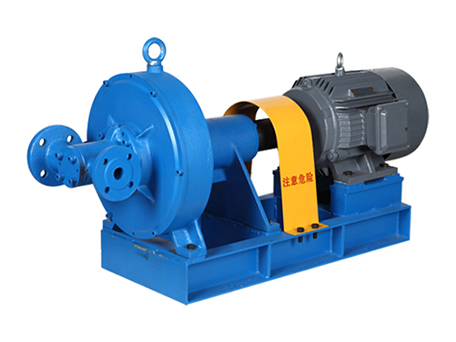

Name	SX-2 series rotary jet pump
Model	SX-2/SX-2S
Description	The inlet pressure is less than 1.5Mpa. Flow: 1~11m3/h Lift: 55~300m Speed range: 4000rpm Maximum efficiency: 55% Matching power: 4~22kw Pump head size: 526*378*472 (L*W*H) Weight of pump head: 79~92kg Imported supporting flange: DN32 Exit matching flange: DN25 Overflow component material selection Please contact us for the specific appearance and size of the installation The advantages of comparison with SX-2Z: 1 the pump head and the motor independent can be separate to the pump head part of the cooling without affecting the motor suitable for higher temperature. 2. It is easier to change the working condition after the production process is changed If the flow head becomes larger motor power purchase is not sufficient margin you must replace the motor SX-2Z/2SZ motor replacement need to replace many of the components and the need to disassemble the pump SX-2/2S only need to replace the base and the coupling (such as general words and base coupling can not change) without removing the pump is simple to deal with.

Imported supporting flange: DN32

Exit matching flange: DN25


Overflow component material selection


Please contact us for the specific appearance and size of the installation


The advantages of comparison with SX-2Z:

1 the pump head and the motor independent can be separate to the pump head part of the cooling without affecting the motor suitable for higher temperature.

2. It is easier to change the working condition after the production process is changed

If the flow head becomes larger motor power purchase is not sufficient margin you must replace the motor SX-2Z/2SZ motor replacement need to replace many of the components and the need to disassemble the pump SX-2/2S only need to replace the base and the coupling (such as general words and base coupling can not change) without removing the pump is simple to deal with.

1、	The supply cycle indicates that the supply cycle of the whole pump is 2 to 3 months, and the spare parts are about 1 months, due to the difference of the specific working conditions (the material and electric motor of the pump will change due to the change of working conditions).
2、	Medium condition: when ordering products, please provide detailed medium parameters (composition and content, temperature, specific gravity, viscosity, etc.).
